1/8" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23129

Cle-Line

1/8" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23129

MFR# C23129Series 1801

$1.56List $2.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2

Description

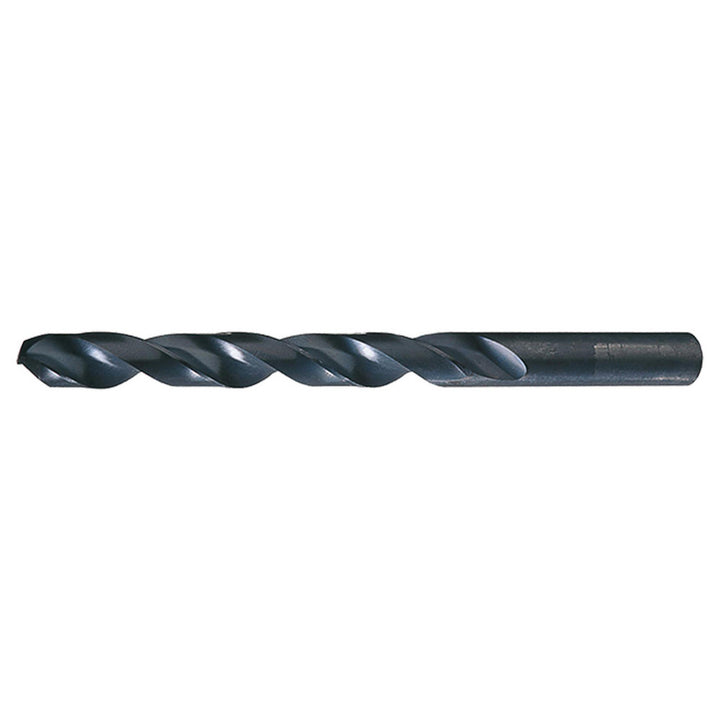

The Cle-Line C23129 is a 1/8" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 1-5/8 flute length, 2-3/4 overall length. Series 1801.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-5/8
Flute typeSpiral
Number of flutes2
Overall length in2-3/4
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in1/8
Shank length1.1252
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
