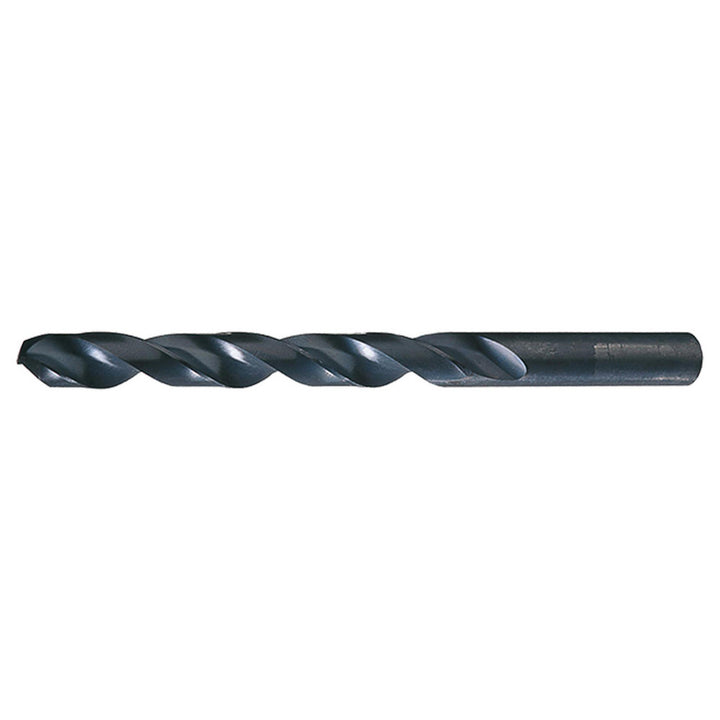

5/32" HSS Drill Bit, Oxide, 135° point - Cle-Line C23131

Cle-Line

5/32" HSS Drill Bit, Oxide, 135° point - Cle-Line C23131

MFR# C23131Series 1801

$1.90List $2.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/32
Flutes2
CoatingOxide

Description

The Cle-Line C23131 is a 5/32" HSS drill bit with a Oxide finish, 135° point. Suited for steel, cast iron. 2 flute length, 3-1/8 overall length. Series 1801.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in5/32
Shank length1.1252
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
