Cle-Line

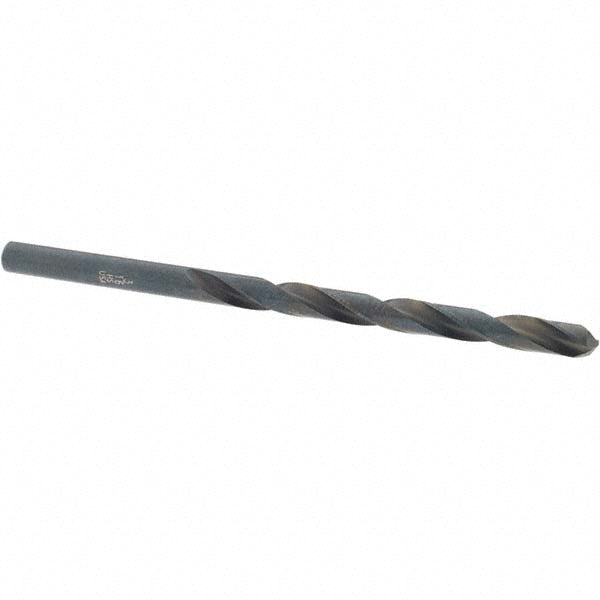

3/16" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23133
MFR# C23133Series 1801
$1.95List $2.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
Description
The Cle-Line C23133 is a 3/16" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. Series 1801.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length2.3125
Flute typeSpiral
Number of flutes2
Overall length3.5000
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in3/16
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
