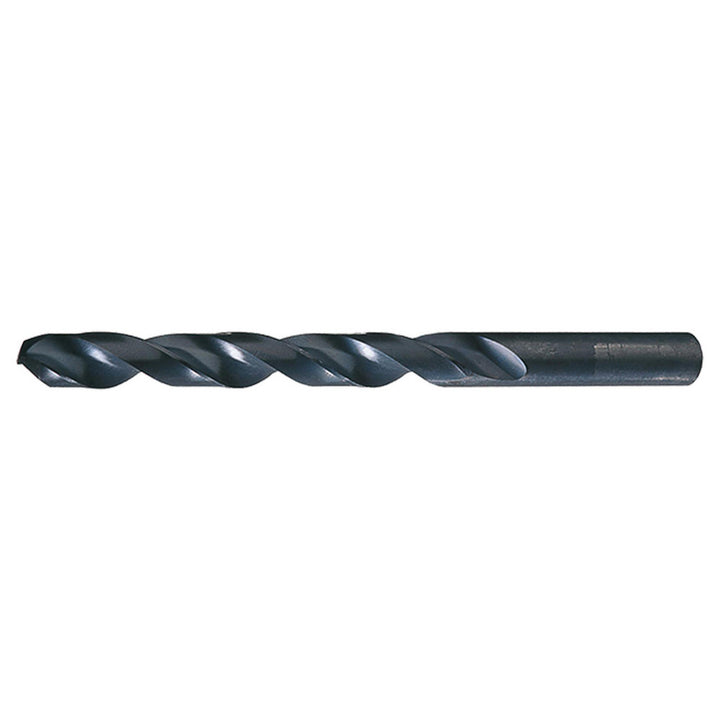

13/64" HSS Drill Bit, Oxide, 135° point - Cle-Line C23134

Cle-Line

13/64" HSS Drill Bit, Oxide, 135° point - Cle-Line C23134

MFR# C23134Series 1801

$2.37List $3.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingOxide

Description

The Cle-Line C23134 is a 13/64" HSS drill bit with a Oxide finish, 135° point. Suited for steel, cast iron. 2-7/16 flute length, 3-5/8 overall length. Series 1801.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute length in2-7/16
Flute typeRegular Spiral
Number of flutes2
Overall length in3-5/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in13/64
Shank length1.1874
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
