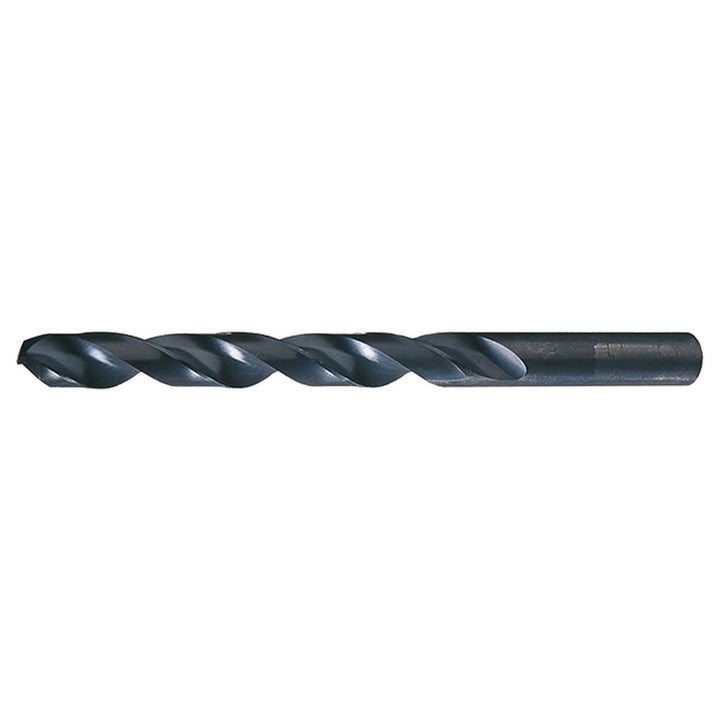

7/32" HSS Drill Bit, Oxide, 135° point - Cle-Line C23135

Cle-Line

7/32" HSS Drill Bit, Oxide, 135° point - Cle-Line C23135

MFR# C23135Series 1801

$2.50List $3.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingOxide

Description

The Cle-Line C23135 is a 7/32" HSS drill bit with a Oxide finish, 135° point. Suited for steel, cast iron. 2-1/2 flute length, 3-3/4 overall length. Series 1801.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in7/32
Drill point angle degrees135
Flute length in2-1/2
Flute typeRegular Spiral
Number of flutes2
Overall length in3-3/4
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in7/32
Shank length1.2500
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
