Cle-Line

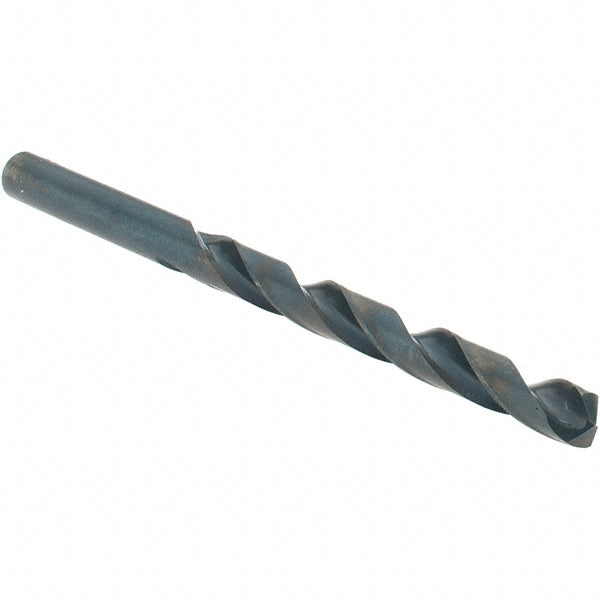

1/4" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23137
MFR# C23137Series 1801
$3.04List $3.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 12 — minimum order 12
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
Description
The Cle-Line C23137 is a 1/4" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 2-3/4 flute length, 4 overall length. Series 1801.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-3/4
Flute typeSpiral
Number of flutes2
Overall length in4
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in1/4
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
