Cle-Line

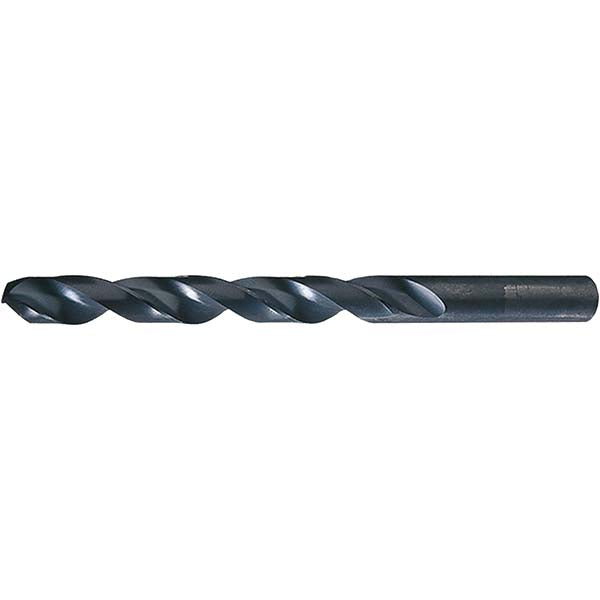

1/4" High Speed Steel Drill Bit, 135° point - Cle-Line C23137BP
MFR# C23137BPSeries 1801
$2.84List $3.58
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 50 — minimum order 50
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
Description
The Cle-Line C23137BP is a 1/4" High Speed Steel drill bit, 135° point. Suited for cast iron, steel. Series 1801.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit materialHigh Speed Steel
Drill bit size in1/4
Drill point angle degrees135
Flute by diameter ratio3xD
Flute length2.7500
Flute typeSpiral
Maximum drilling depth0.6300
Number of flutes2
Overall length4.0000
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in1/4
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
