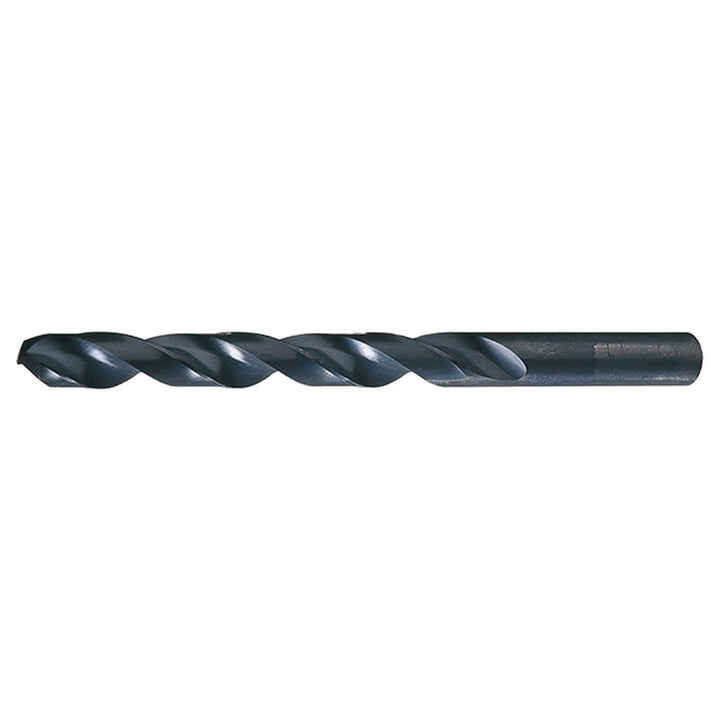

11/32" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23143

Cle-Line

11/32" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23143

MFR# C23143Series 1801

$5.50List $7.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2
CoatingOxide

Description

The Cle-Line C23143 is a 11/32" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 3-7/16 flute length, 4-3/4 overall length. Series 1801.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in11/32
Shank length1.3126
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
