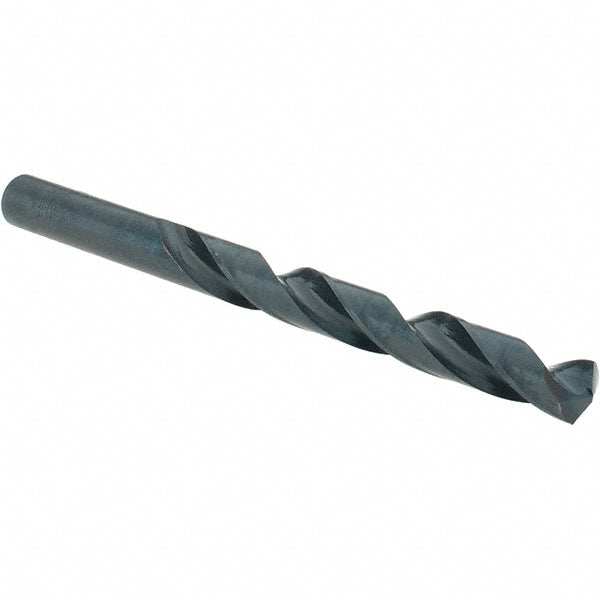

25/64" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23146

Cle-Line

25/64" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23146

MFR# C23146Series 1801

$7.10List $9.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size25/64
Flutes2

Description

The Cle-Line C23146 is a 25/64" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 3-3/4 flute length, 5-1/8 overall length. Series 1801.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in25/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-3/4
Flute typeSpiral
Number of flutes2
Overall length in5-1/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in25/64
Shank length1.3748
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
