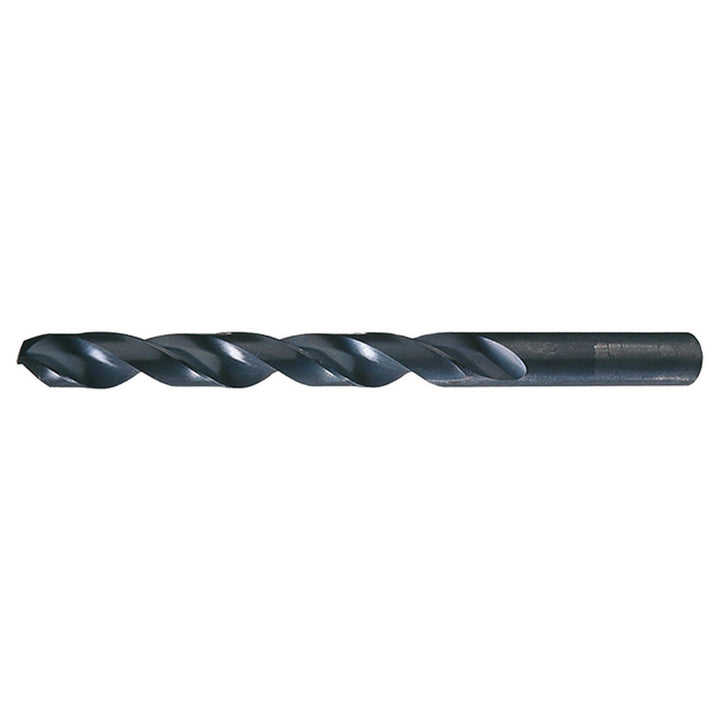

13/32" HSS Drill Bit, Oxide, 135° point - Cle-Line C23147

Cle-Line

13/32" HSS Drill Bit, Oxide, 135° point - Cle-Line C23147

MFR# C23147Series 1801

$7.33List $9.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2
CoatingOxide

Description

The Cle-Line C23147 is a 13/32" HSS drill bit with a Oxide finish, 135° point. Suited for steel, cast iron. 3-7/8 flute length, 5-1/4 overall length. Series 1801.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-7/8
Flute typeRegular Spiral
Number of flutes2
Overall length in5-1/4
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter in13/32
Shank length1.3752
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
