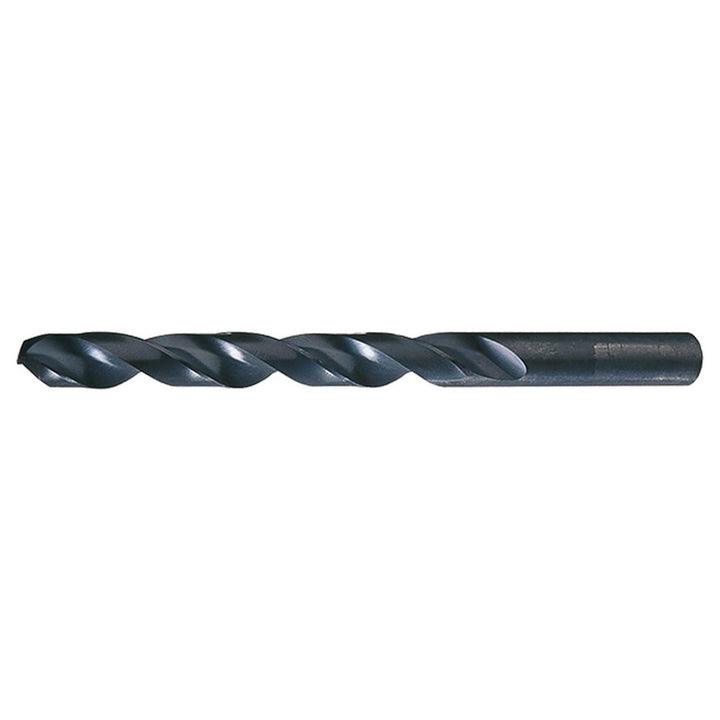

7/16" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23149

Cle-Line

7/16" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23149

MFR# C23149Series 1801

$8.71List $11.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2

Description

The Cle-Line C23149 is a 7/16" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 4-1/16 flute length, 5-1/2 overall length. Series 1801.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-1/16
Flute typeSpiral
Number of flutes2
Overall length in5-1/2
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in7/16
Shank length1.4374
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
