Cle-Line

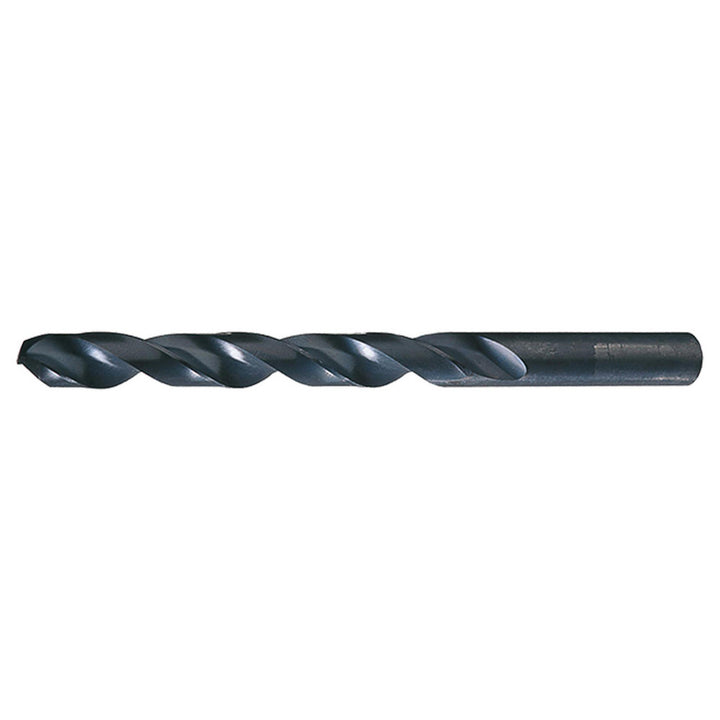

15/32" High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23151
MFR# C23151Series 1801
$10.35List $13.05
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
CoatingOxide
Description
The Cle-Line C23151 is a 15/32" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 4-5/16 flute length, 5-3/4 overall length. Series 1801.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-5/16
Flute typeSpiral
Number of flutes2
Overall length in5-3/4
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in15/32
Shank length1.4374
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
