Cle-Line

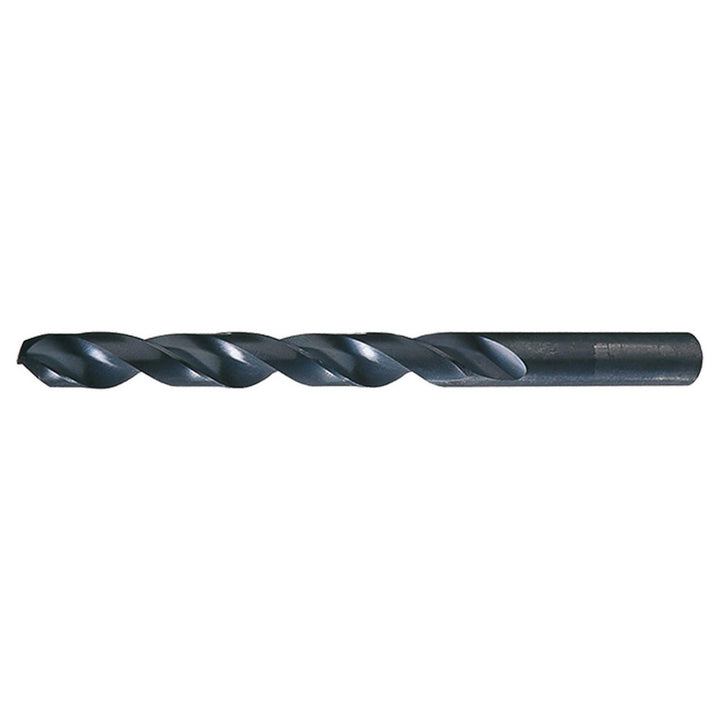

#25 HSS Drill Bit, Oxide, 135° point - Cle-Line C23189
MFR# C23189
$1.98List $2.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Cle-Line C23189 is a #25 HSS drill bit with a Oxide finish, 135° point. Suited for steel, cast iron. 1-7/8 flute length, 3 overall length.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.1495
Drill bit size range0.1000 - 0.1500
Drill bit size wire#25
Drill point angle degrees135
Flute length in1-7/8
Flute typeRegular Spiral
Overall length in3
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.1495
Shank length1.1248
Shank typeStraight
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
