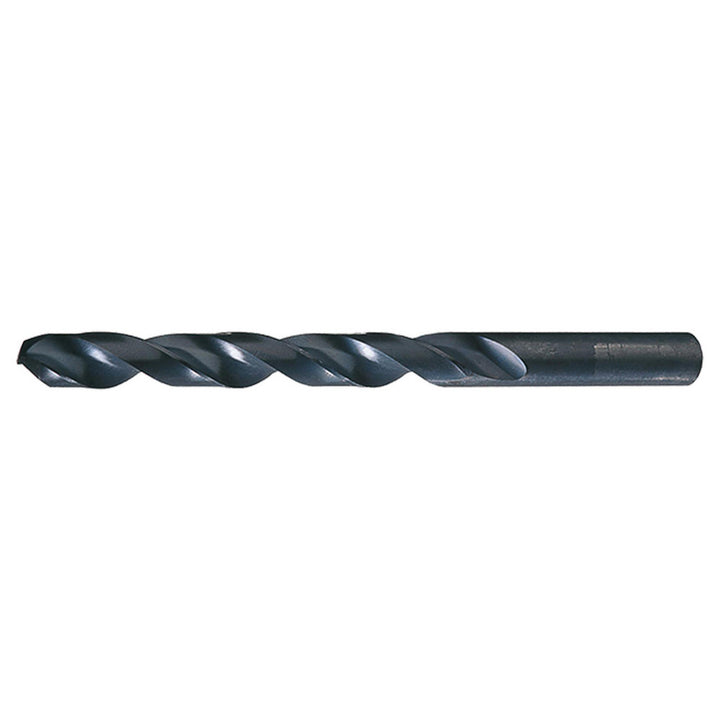

#20 High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23194

Cle-Line

#20 High Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23194

MFR# C23194Series 1801

$2.24List $2.87 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Cle-Line C23194 is a #20 High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 2-1/8 flute length, 3-1/4 overall length. Series 1801.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.1610
Drill bit size range0.1500 - 0.2000
Drill bit size wire#20
Drill point angle degrees135
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-1/4
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter0.1610
Shank length1.1252
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
