Letter F Cobalt Drill Bit, Gold, 135° point - Cle-Line C23324

Cle-Line

Letter F Cobalt Drill Bit, Gold, 135° point - Cle-Line C23324

MFR# C23324Series 1802

$6.23List $7.98 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

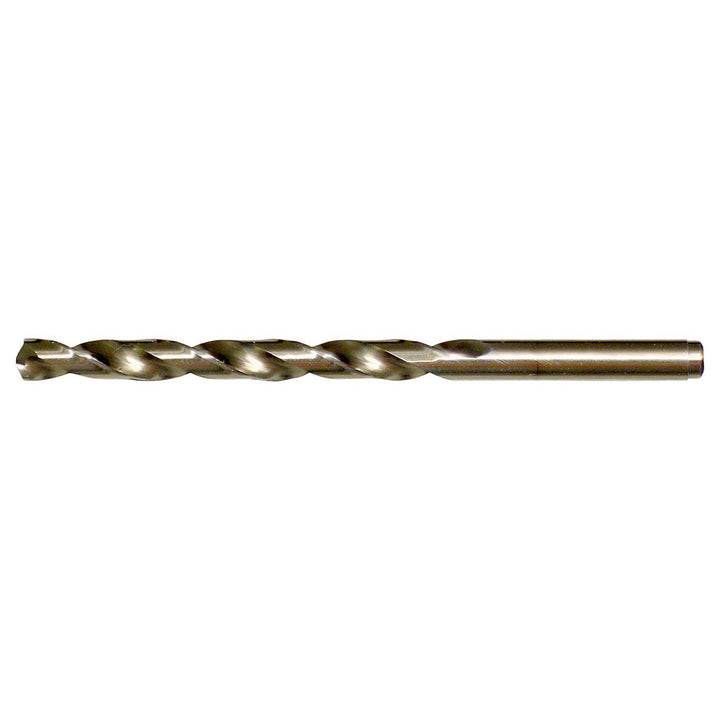

The Cle-Line C23324 is a Letter F Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 2-7/8 flute length, 4-1/8 overall length. Series 1802.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-7/8
Flute typeSpiral
Number of flutes2
Overall length in4-1/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.2570
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
