1/16" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23345

Cle-Line

1/16" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23345

MFR# C23345Series 1802

$1.91List $2.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/16
Flutes2
CoatingTiN

Description

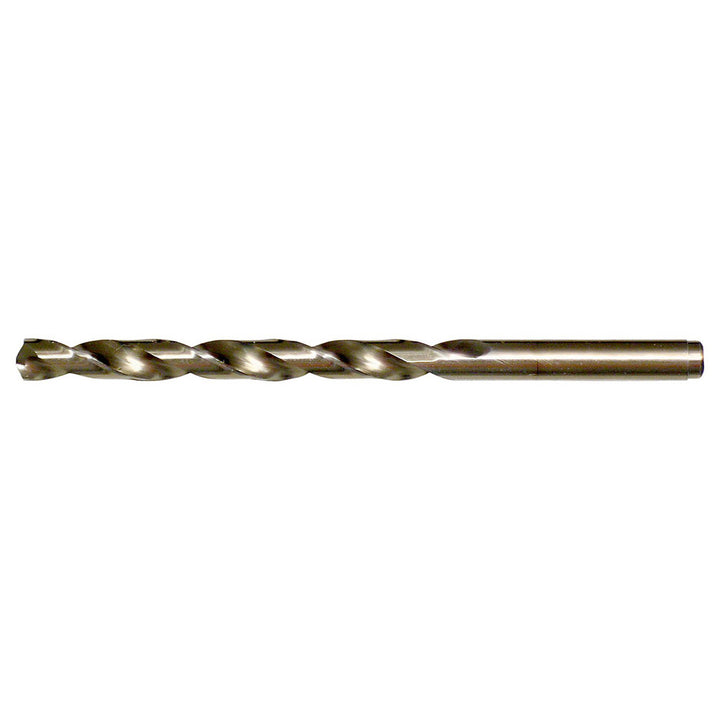

The Cle-Line C23345 is a 1/16" Cobalt drill bit with a TiN finish, 135° point. Suited for aluminum, superalloy, titanium. 7/8 flute length, 1-7/8 overall length. Series 1802.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute length in7/8
Flute typeSpiral
Number of flutes2
Overall length in1-7/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in1/16
Shank length1.0004
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
