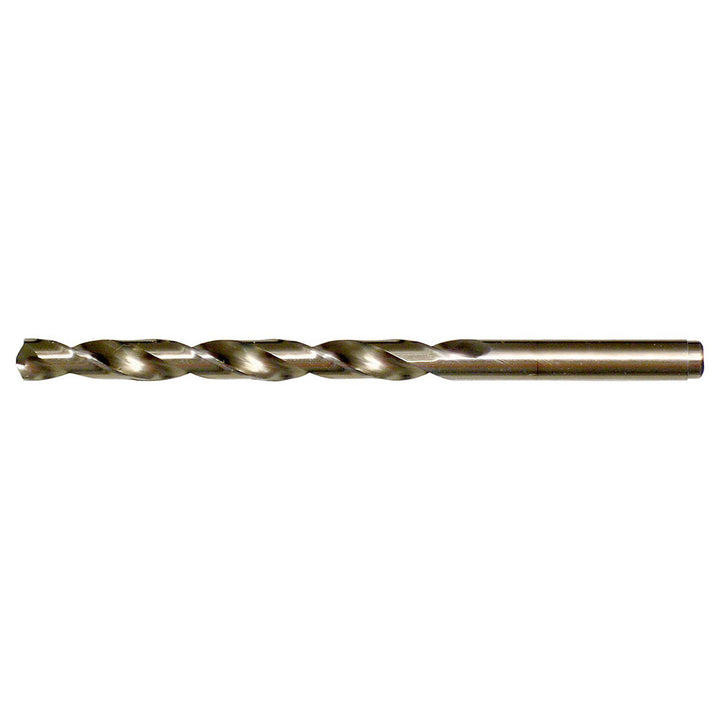

5/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23346

Cle-Line

5/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23346

MFR# C23346Series 1802

$1.99List $2.55 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/64
Flutes2
CoatingTiN

Description

The Cle-Line C23346 is a 5/64" Cobalt drill bit with a TiN finish, 135° point. Suited for aluminum, superalloy, titanium. 1 flute length, 2 overall length. Series 1802.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in5/64
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in5/64
Shank length1.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
