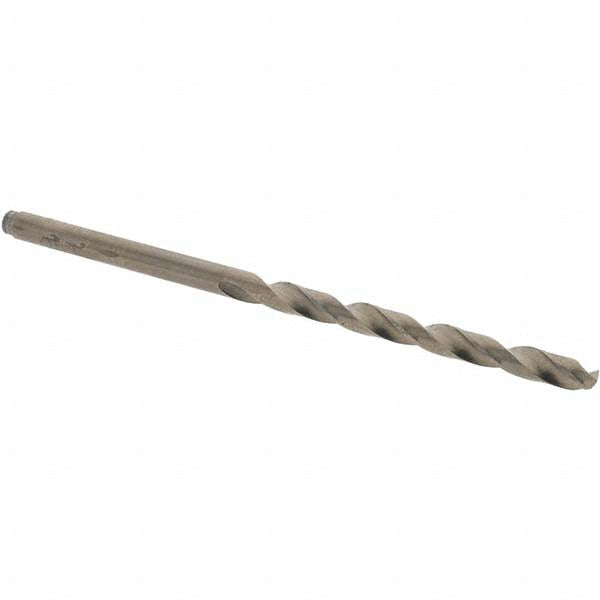

1/8" Cobalt Drill Bit, Gold, 135° point - Cle-Line C23349

Cle-Line

1/8" Cobalt Drill Bit, Gold, 135° point - Cle-Line C23349

MFR# C23349Series 1802

$2.54List $3.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2

Description

The Cle-Line C23349 is a 1/8" Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 1-5/8 flute length, 2-3/4 overall length. Series 1802.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-5/8
Flute typeSpiral
Number of flutes2
Overall length in2-3/4
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in1/8
Shank length1.1252
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
