9/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23350

Cle-Line

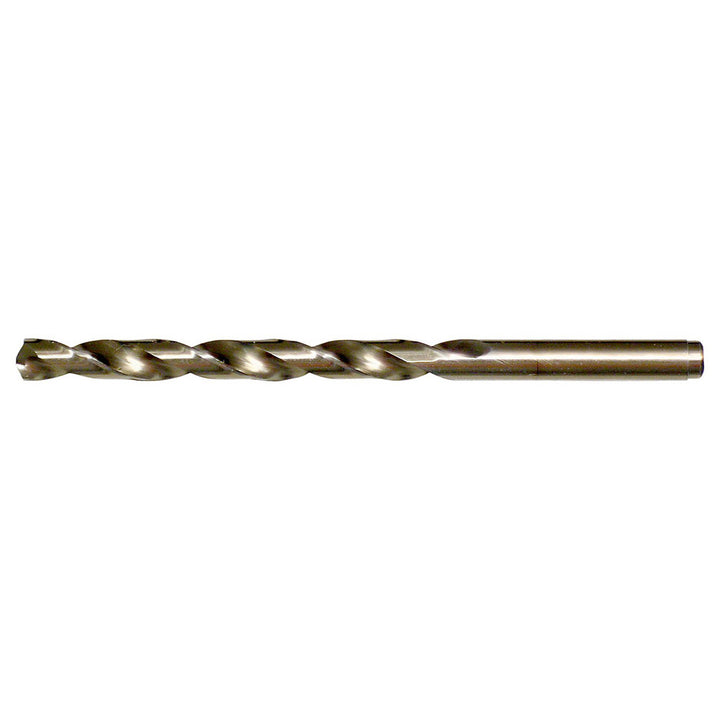

9/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23350

MFR# C23350Series 1802

$2.66List $3.41 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTiN

Description

The Cle-Line C23350 is a 9/64" Cobalt drill bit with a TiN finish, 135° point. Suited for aluminum, superalloy, titanium. 1-3/4 flute length, 2-7/8 overall length. Series 1802.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in2-7/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in9/64
Shank length1.1248
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
