3/16" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23353

Cle-Line

3/16" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23353

MFR# C23353Series 1802

$3.68List $4.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingTiN

Description

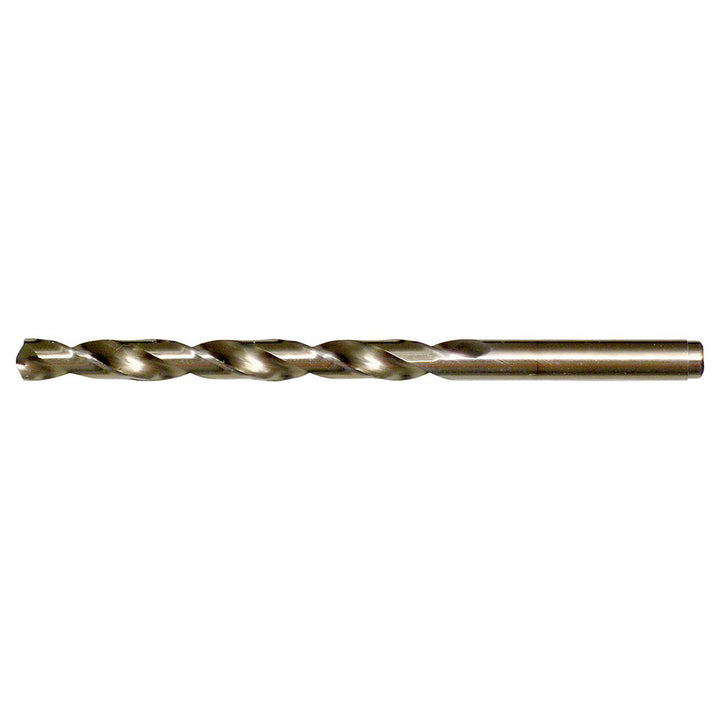

The Cle-Line C23353 is a 3/16" Cobalt drill bit with a TiN finish, 135° point. Suited for aluminum, superalloy, titanium. 2-5/16 flute length, 3-1/2 overall length. Series 1802.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2-5/16
Flute typeSpiral
Number of flutes2
Overall length in3-1/2
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in3/16
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
