7/32" Cobalt Drill Bit, Gold, 135° point - Cle-Line C23355

Cle-Line

7/32" Cobalt Drill Bit, Gold, 135° point - Cle-Line C23355

MFR# C23355Series 1802

$4.45List $5.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2

Description

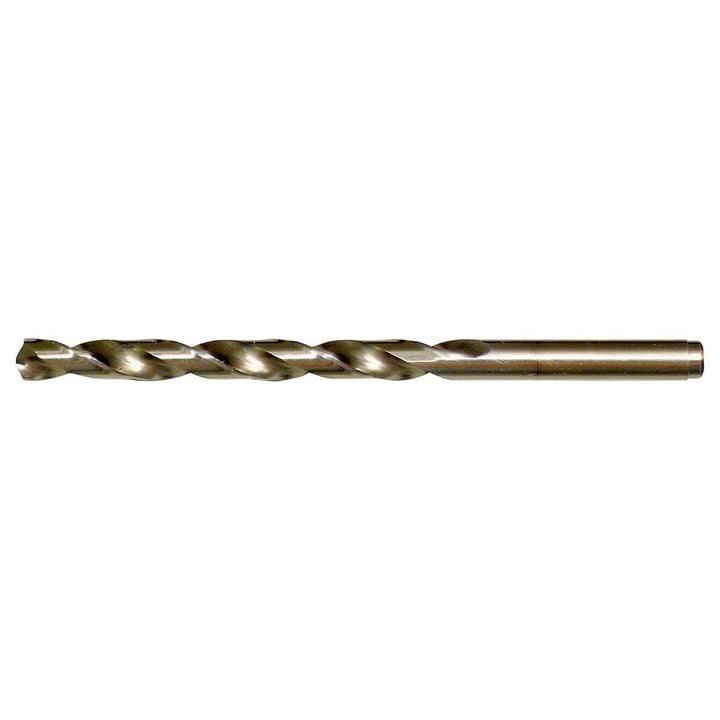

The Cle-Line C23355 is a 7/32" Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 2-1/2 flute length, 3-3/4 overall length. Series 1802.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute length in2-1/2
Flute typeSpiral
Number of flutes2
Overall length in3-3/4
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in7/32
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
