Cle-Line

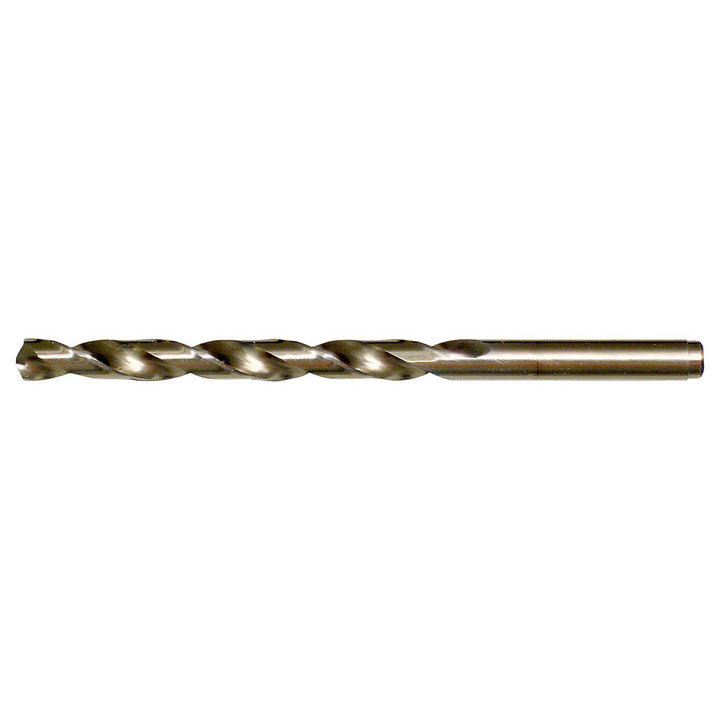

11/32" Cobalt Drill Bit, 135° point - Cle-Line C23363
MFR# C23363
$10.23List $13.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Description
The Cle-Line C23363 is a 11/32" Cobalt drill bit, 135° point. 3-7/16 flute length, 4-3/4 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeSpiral
Overall length in4-3/4
Point typeSplit
Shank diameter in11/32
Shank length1.3126
Shank typeStraight-Cylindrical
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
