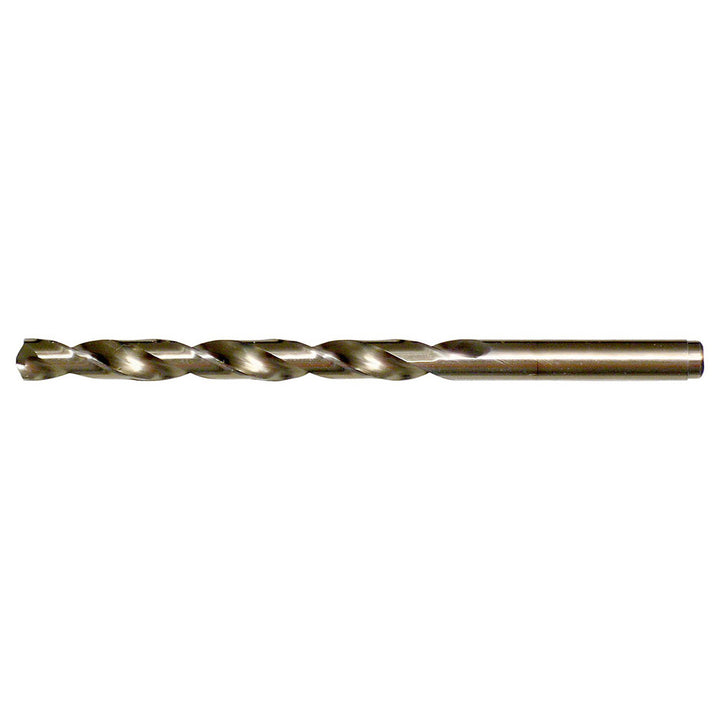

25/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23366

Cle-Line

25/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C23366

MFR# C23366Series 1802

$12.99List $16.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size25/64
Flutes2
CoatingTiN

Description

The Cle-Line C23366 is a 25/64" Cobalt drill bit with a TiN finish, 135° point. Suited for aluminum, superalloy, titanium. 3-3/4 flute length, 5-1/8 overall length. Series 1802.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in25/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-3/4
Flute typeSpiral
Number of flutes2
Overall length in5-1/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in25/64
Shank length1.3748
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
