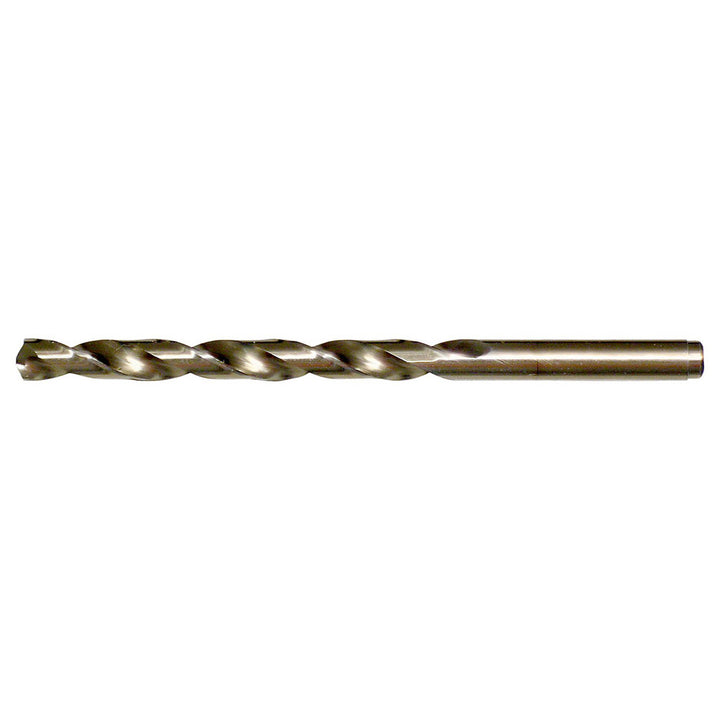

27/64" Cobalt Drill Bit, Gold, 135° point - Cle-Line C23368

Cle-Line

27/64" Cobalt Drill Bit, Gold, 135° point - Cle-Line C23368

MFR# C23368Series 1802

$15.40List $19.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2

Description

The Cle-Line C23368 is a 27/64" Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 3-15/16 flute length, 5-3/8 overall length. Series 1802.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-15/16
Flute typeSpiral
Number of flutes2
Overall length in5-3/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in27/64
Shank length1.4378
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
