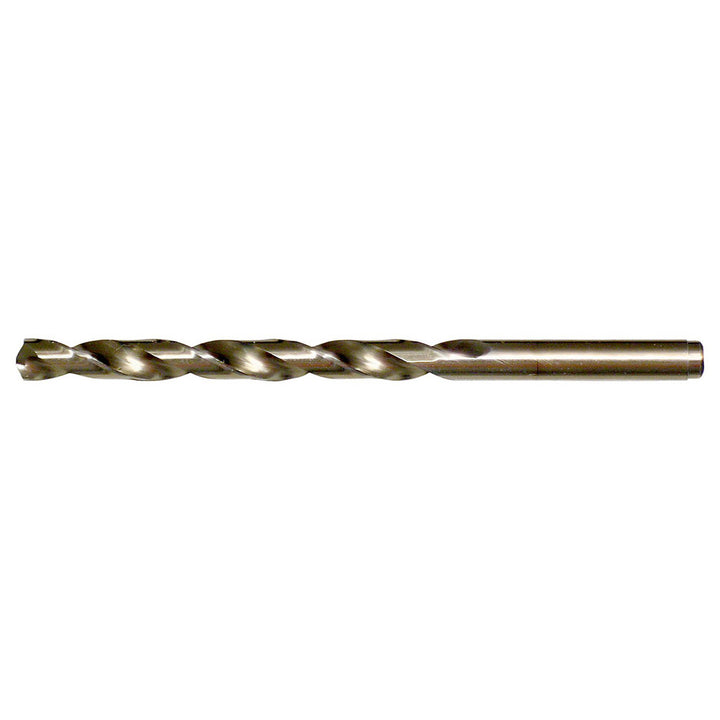

#30 Cobalt Drill Bit, TiN, 135° point - Cle-Line C23404

Cle-Line

#30 Cobalt Drill Bit, TiN, 135° point - Cle-Line C23404

MFR# C23404Series 1802

$2.60List $3.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Cle-Line C23404 is a #30 Cobalt drill bit with a TiN finish, 135° point. Suited for aluminum, superalloy, titanium. 1-5/8 flute length, 2-3/4 overall length. Series 1802.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees135
Flute length in1-5/8
Flute typeSpiral
Number of flutes2
Overall length in2-3/4
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.1285
Shank length1.1252
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
