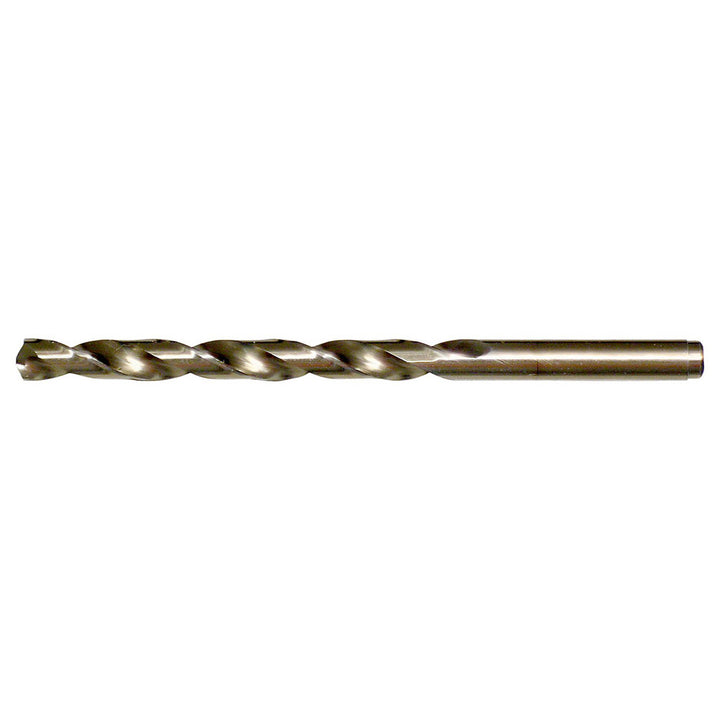

#21 Cobalt Drill Bit, Straw, 135° point - Cle-Line C23413

Cle-Line

#21 Cobalt Drill Bit, Straw, 135° point - Cle-Line C23413

MFR# C23413Series 1802

$3.21List $4.11 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Cle-Line C23413 is a #21 Cobalt drill bit with a Straw finish, 135° point. Suited for stainless steel, hardened materials. 2-1/8 flute length, 3-1/4 overall length. Series 1802.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1590
Drill bit size range0.1500 - 0.2000
Drill bit size wire#21
Drill point angle degrees135
Flute length in2-1/8
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/4
Point typeSplit Point
Primary workpiece materialStainless Steel; Hardened Materials
Shank diameter0.1590
Shank length1.1252
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
