Cle-Line

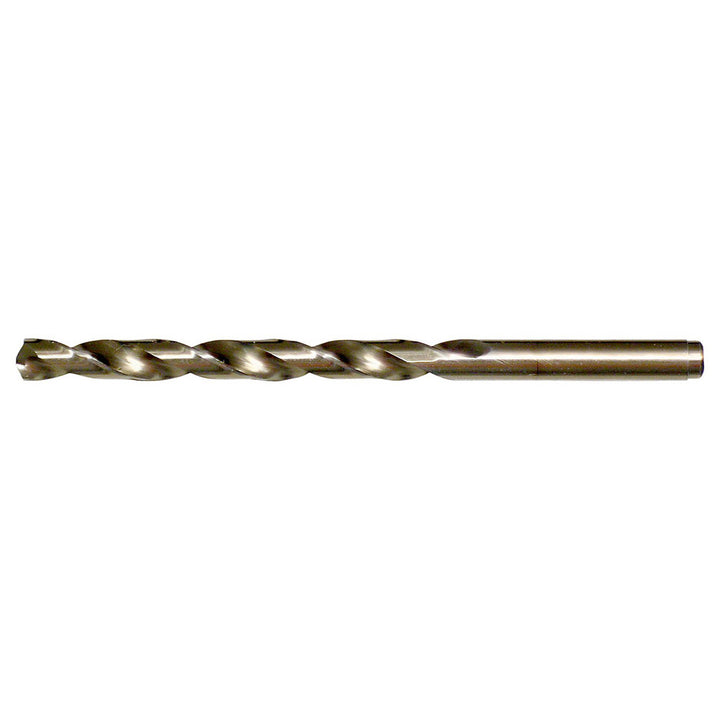

#10 Cobalt Drill Bit, 135° point - Cle-Line C23424
MFR# C23424
$4.28List $5.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Cle-Line C23424 is a #10 Cobalt drill bit, 135° point. 2-7/16 flute length, 3-5/8 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1935
Drill bit size range0.1500 - 0.2000
Drill bit size wire#10
Drill point angle degrees135
Flute length in2-7/16
Flute typeSpiral
Overall length in3-5/8
Point typeSplit
Shank diameter0.1935
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
