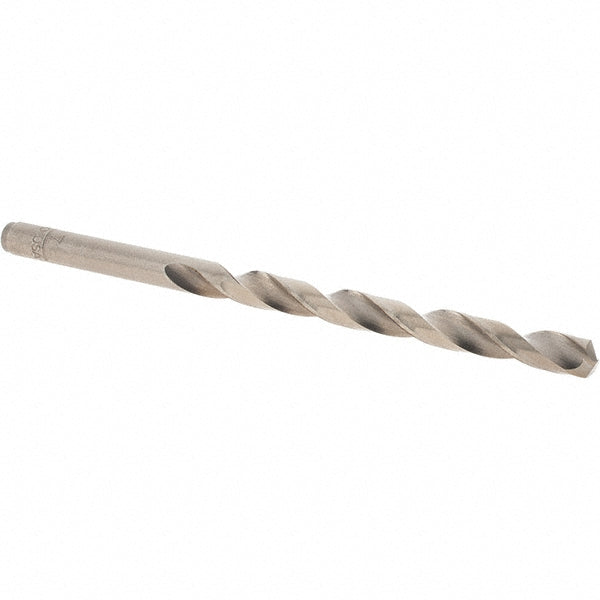

#7 Cobalt Drill Bit, Straw, 135° point - Cle-Line C23427

Cle-Line

#7 Cobalt Drill Bit, Straw, 135° point - Cle-Line C23427

MFR# C23427Series 1802

$4.20List $5.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Cle-Line C23427 is a #7 Cobalt drill bit with a Straw finish, 135° point. Suited for stainless steel, hardened materials. 2-7/16 flute length, 3-5/8 overall length. Series 1802.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2010
Drill bit size range0.2000 - 0.2500
Drill bit size wire#7
Drill point angle degrees135
Flute length in2-7/16
Flute typeRegular Spiral
Number of flutes2
Overall length in3-5/8
Point typeSplit Point
Primary workpiece materialStainless Steel; Hardened Materials
Shank diameter0.2010
Shank length1.1874
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
