Cle-Line

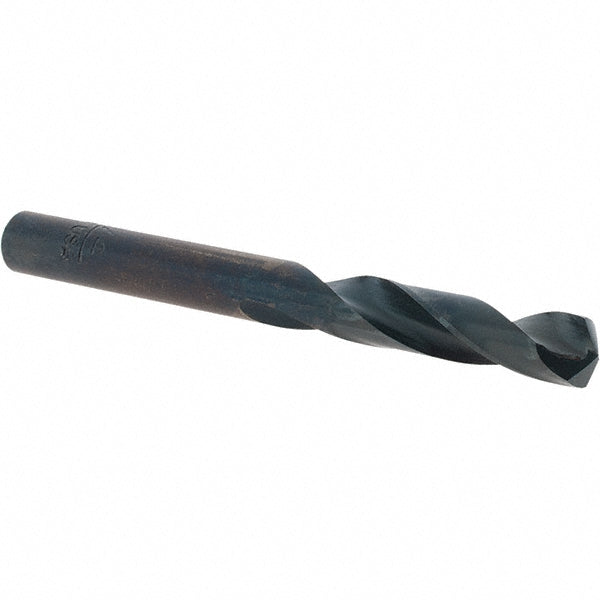

1/4" High-Speed Steel Screw Machine Drill Bit, Coated, 135° point - Cle-Line C23472
MFR# C23472Series 1896
$2.55List $3.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingCoated
Description
The Cle-Line C23472 is a 1/4" High-Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 1-3/8 flute length, 2-1/2 overall length. Series 1896.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-3/8
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter0.2500
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
