Cle-Line

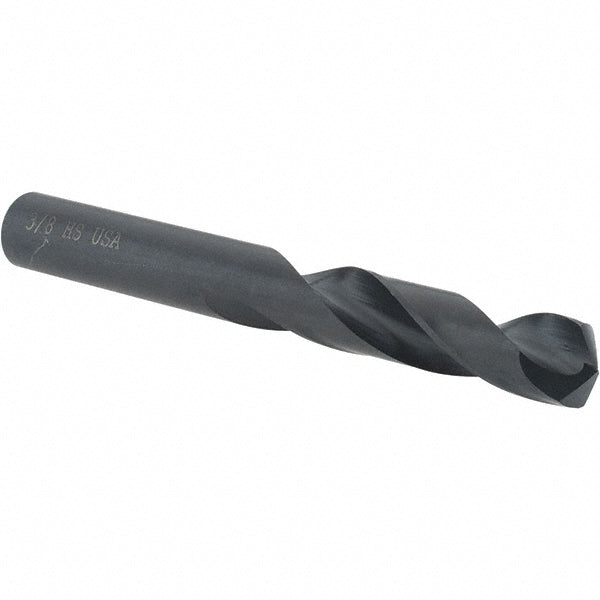

3/8" High-Speed Steel Screw Machine Drill Bit, Coated, 135° point - Cle-Line C23480
MFR# C23480Series 1896
$5.37List $6.77
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 6 — minimum order 6
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingCoated
Description
The Cle-Line C23480 is a 3/8" High-Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 1-13/16 flute length, 3-1/8 overall length. Series 1896.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-13/16
Flute typeSpiral
Number of flutes2
Overall length in3-1/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter0.3750
Shank length in1-5/16
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
