Cle-Line

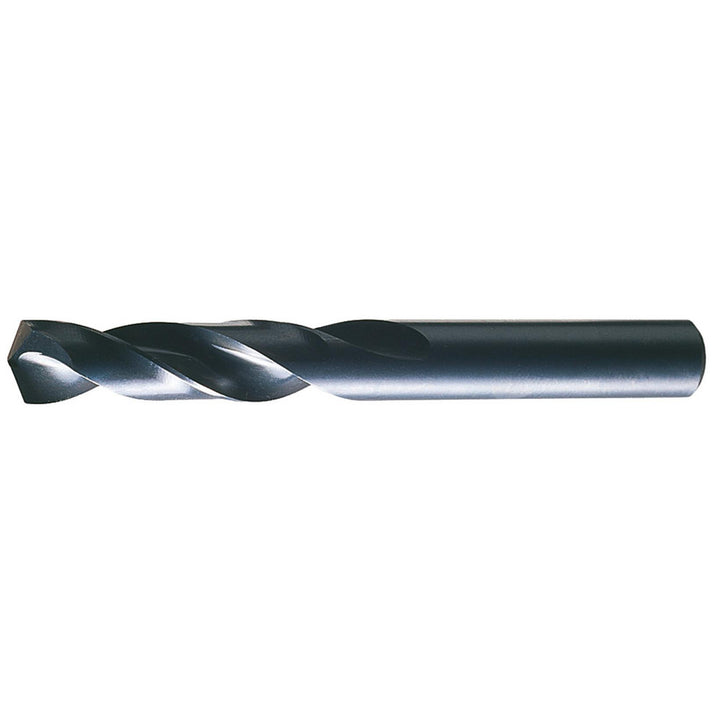

#10 High-Speed Steel Regular Drill Bit, Oxide, 135° point - Cle-Line C23550
MFR# C23550Series 1896
$2.15List $2.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Cle-Line C23550 is a #10 High-Speed Steel Regular drill bit with a Oxide finish, 135° point. 1-3/16 flute length, 2-1/4 overall length. Series 1896.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1935
Drill bit size range0.1500 to 0.2000
Drill bit size wire#10
Drill length typeRegular
Drill point angle135
Flute length in1-3/16
Flute typeSpiral
Overall length in2-1/4
Point typeSplit
Shank diameter0.1933
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
