Cle-Line

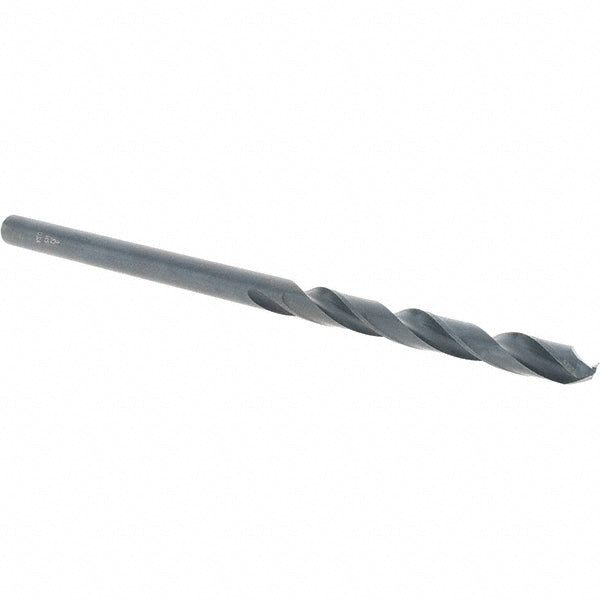

9/32" High-Speed Steel Drill Bit, Oxide, 135° point - Cle-Line C23635
MFR# C23635Series 1803
$9.49List $12.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
CoatingOxide
Description
The Cle-Line C23635 is a 9/32" High-Speed Steel drill bit with a Oxide finish, 135° point. 3-1/16 flute length, 6 overall length. Series 1803.
Specifications
Coating finishOxide
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in9/32
Drill point angle degrees135
Flute length in3-1/16
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Self centeringYes
Shank diameter in9/32
Shank typeStraight-Cylindrical
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
