Cle-Line

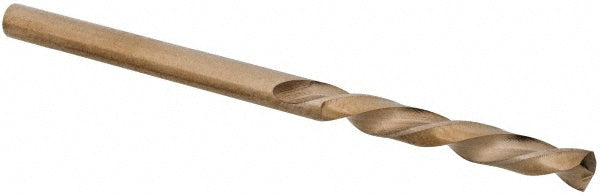

1/8" Cobalt Mechanics Drill Bit, Gold, 135° point - Cle-Line C30508
MFR# C30508Series 1880
$5.34List $6.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingGold
Description
The Cle-Line C30508 is a 1/8" Cobalt Mechanics drill bit with a Gold finish, 135° point. Suited for superalloy, titanium. 1-1/16 flute length, 2-1/4 overall length. Series 1880.
Specifications
Coating finishGold
Coolant throughNo
Cutting directionLeft Hand
Drill bit size in1/8
Drill length typeMechanics
Drill point angle135
Flute length in1-1/16
Flute typeSpiral
Number of pieces1
Overall length in2-1/4
Point typeSplit
Primary workpiece materialSuperalloy; Titanium
Shank diameter in1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
