Cle-Line

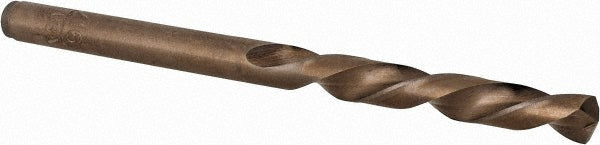

3/16" Cobalt Mechanics Drill Bit, Gold, 135° point - Cle-Line C30512
MFR# C30512Series 1880
$6.94List $8.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
CoatingGold
Description
The Cle-Line C30512 is a 3/16" Cobalt Mechanics drill bit with a Gold finish, 135° point. Suited for superalloy, titanium. 1-1/2 flute length, 2-7/8 overall length. Series 1880.
Specifications
Coating finishGold
Coolant throughNo
Cutting directionLeft Hand
Drill bit size in3/16
Drill length typeMechanics
Drill point angle135
Flute length in1-1/2
Flute typeSpiral
Number of pieces1
Overall length in2-7/8
Point typeSplit
Primary workpiece materialSuperalloy; Titanium
Shank diameter in3/16
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
