Cle-Line

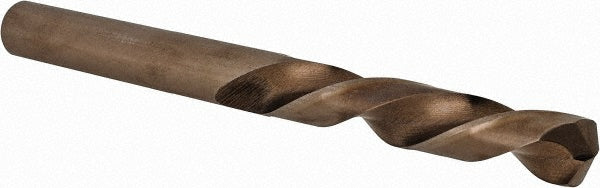

3/8" Cobalt Mechanics Drill Bit, Gold, 135° point - Cle-Line C30524
MFR# C30524Series 1880
$16.08List $20.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
CoatingGold
Description
The Cle-Line C30524 is a 3/8" Cobalt Mechanics drill bit with a Gold finish, 135° point. Suited for superalloy, titanium. 2-3/8 flute length, 4-1/8 overall length. Series 1880.
Specifications
Coating finishGold
Coolant throughNo
Cutting directionLeft Hand
Drill bit size in3/8
Drill length typeMechanics
Drill point angle135
Flute length in2-3/8
Flute typeSpiral
Number of pieces1
Overall length in4-1/8
Point typeSplit
Primary workpiece materialSuperalloy; Titanium
Shank diameter in3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
