Cle-Line

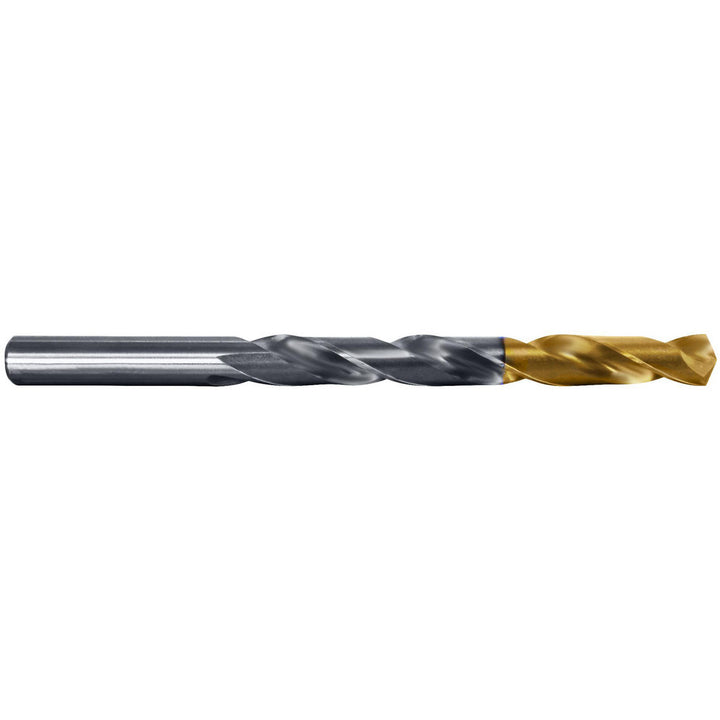

5/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66002
MFR# C66002Series 1501-TT
$1.80List $2.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/64
Flutes2
CoatingTiN
Description
The Cle-Line C66002 is a 5/64" Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 1 flute length, 2 overall length. Series 1501-TT.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size in5/64
Drill point angle degrees135
Flute length in1
Flute typeRegular Spiral
Number of flutes2
Overall length in2
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.0781
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
