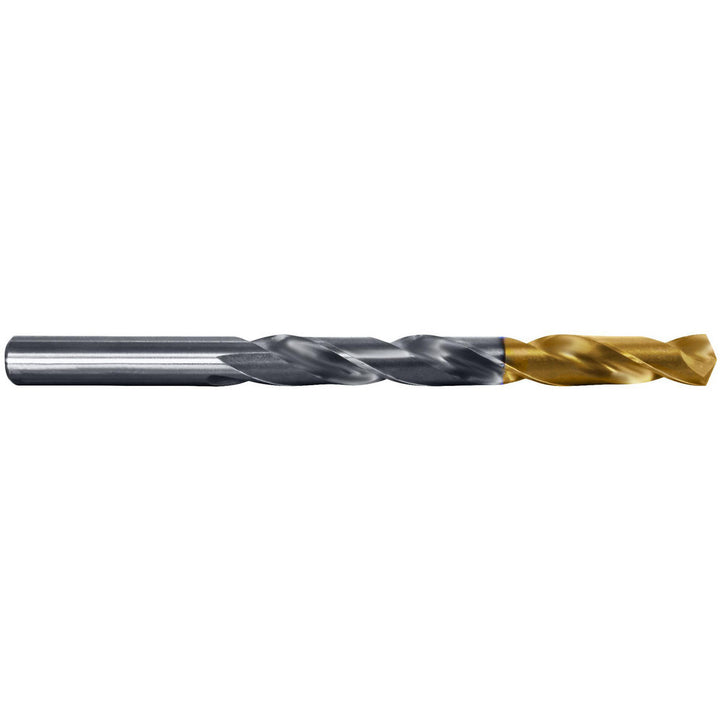

7/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66004

Cle-Line

7/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66004

MFR# C66004Series 1501-TT

$2.07List $2.65 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/64
Flutes2
CoatingTiN

Description

The Cle-Line C66004 is a 7/64" Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 1-1/2 flute length, 2-5/8 overall length. Series 1501-TT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size in7/64
Drill point angle degrees135
Flute length in1-1/2
Flute typeRegular Spiral
Number of flutes2
Overall length in2-5/8
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.1094
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
