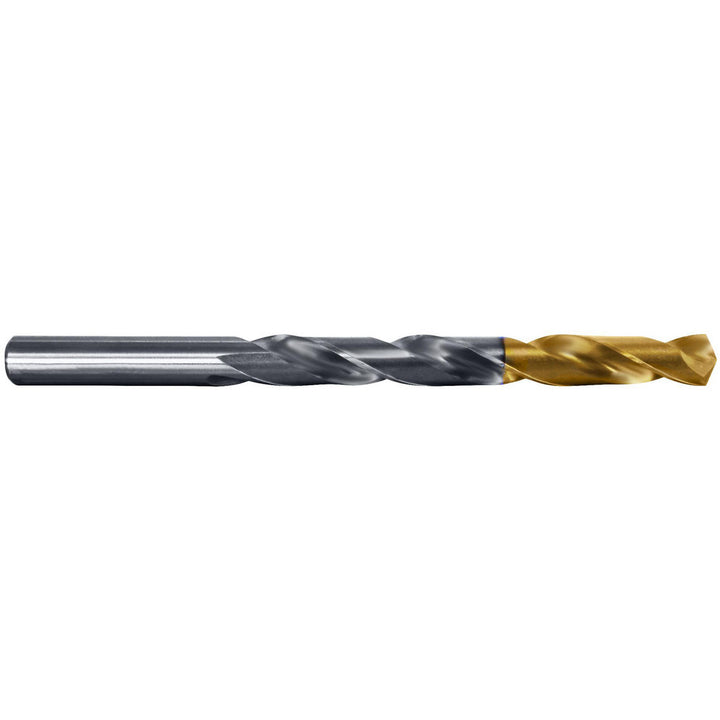

9/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66006

Cle-Line

9/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66006

MFR# C66006Series 1501-TT

$2.37List $3.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTiN

Description

The Cle-Line C66006 is a 9/64" Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 1-3/4 flute length, 2-7/8 overall length. Series 1501-TT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size in9/64
Drill point angle degrees135
Flute length in1-3/4
Flute typeRegular Spiral
Number of flutes2
Overall length in2-7/8
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.1406
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
