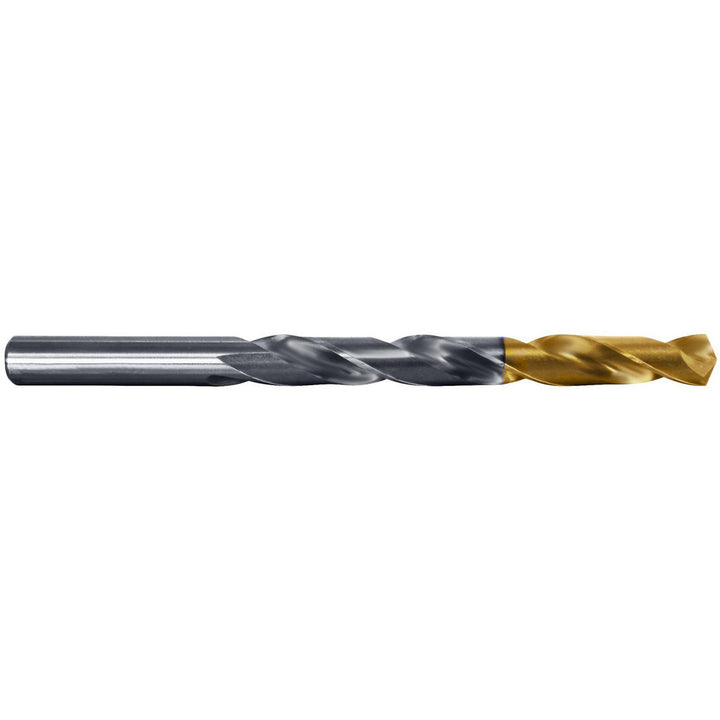

5/32" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66007

Cle-Line

5/32" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66007

MFR# C66007Series 1501-TT

$2.67List $3.42 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/32
Flutes2
CoatingTiN

Description

The Cle-Line C66007 is a 5/32" Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 2 flute length, 3-1/8 overall length. Series 1501-TT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size in5/32
Drill point angle degrees135
Flute length in2
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/8
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.1562
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
