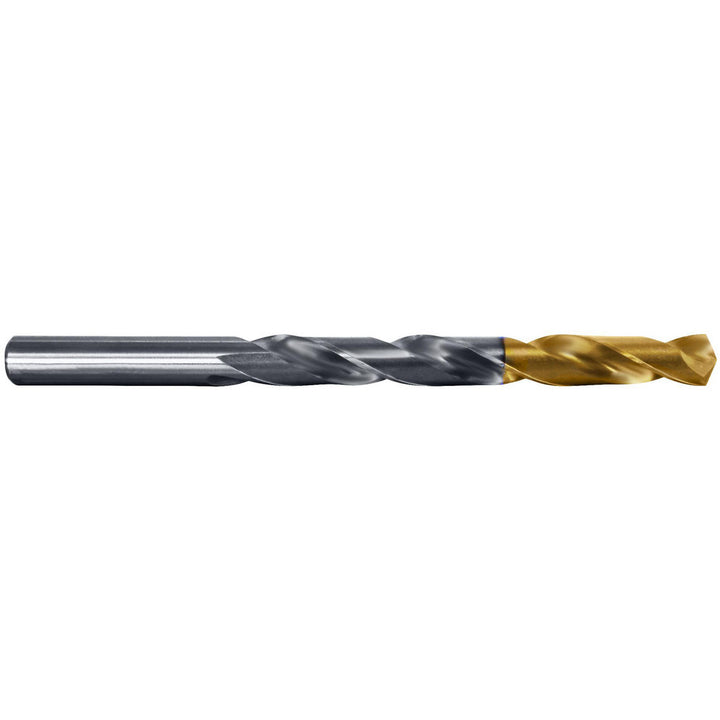

13/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66010

Cle-Line

13/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66010

MFR# C66010Series 1501-TT

$3.28List $4.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingTiN

Description

The Cle-Line C66010 is a 13/64" Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 2-7/16 flute length, 3-5/8 overall length. Series 1501-TT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size in13/64
Drill point angle degrees135
Flute length in2-7/16
Flute typeRegular Spiral
Number of flutes2
Overall length in3-5/8
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.2031
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
