Cle-Line

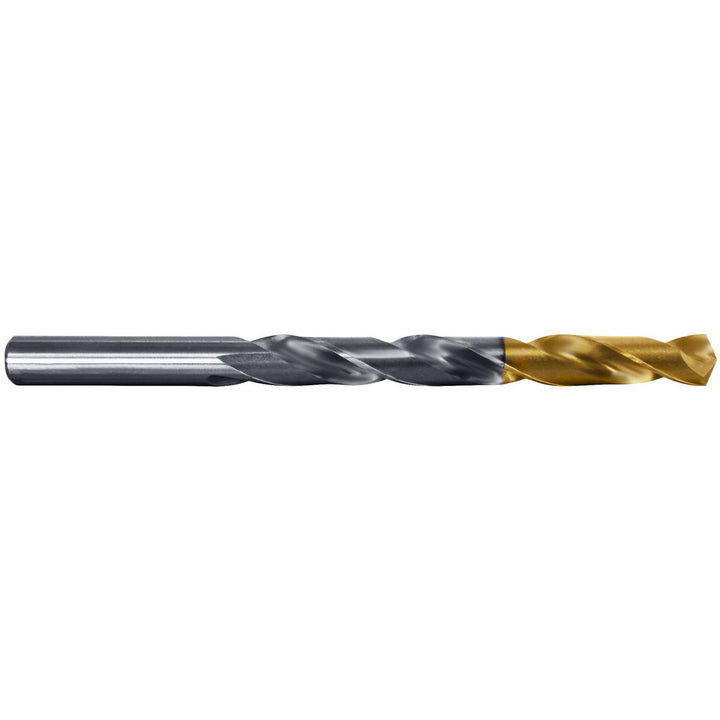

19/64" Cobalt Drill Bit, TiN, 135° point - Cle-Line C66016
MFR# C66016Series 1501-TT
$5.77List $7.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes2
CoatingTiN
Description
The Cle-Line C66016 is a 19/64" Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 3-1/16 flute length, 4-3/8 overall length. Series 1501-TT.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size in19/64
Drill point angle degrees135
Flute length in3-1/16
Flute typeRegular Spiral
Number of flutes2
Overall length in4-3/8
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.2969
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
