Cle-Line
#7 Cobalt Drill Bit, TiN, 135° point - Cle-Line C66061
MFR# C66061Series 1501-TT
$3.45List $4.42
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

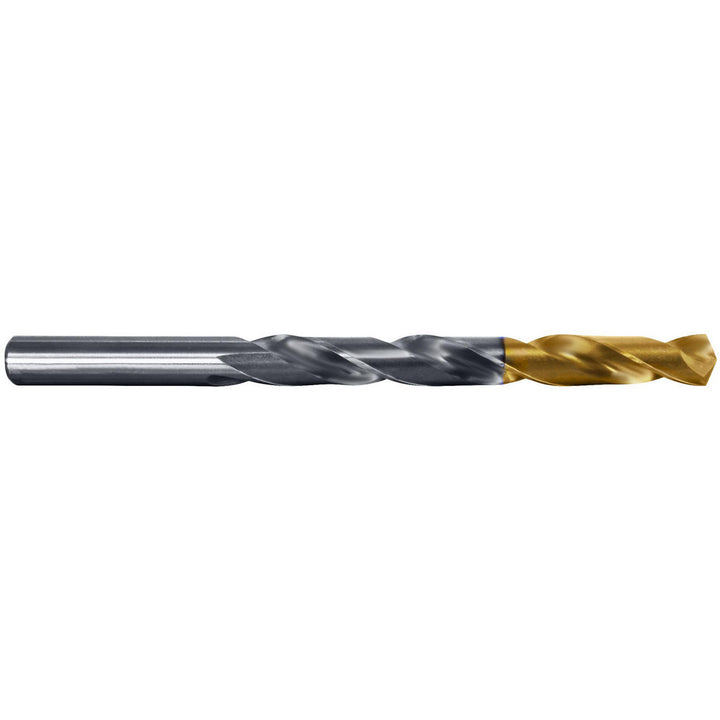

The Cle-Line C66061 is a #7 Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 2-7/16 flute length, 3-5/8 overall length. Series 1501-TT.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size wire#7
Drill point angle degrees135
Flute length in2-7/16
Flute typeSpiral
Number of flutes2
Overall length in3-5/8
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.2010
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
