Cle-Line

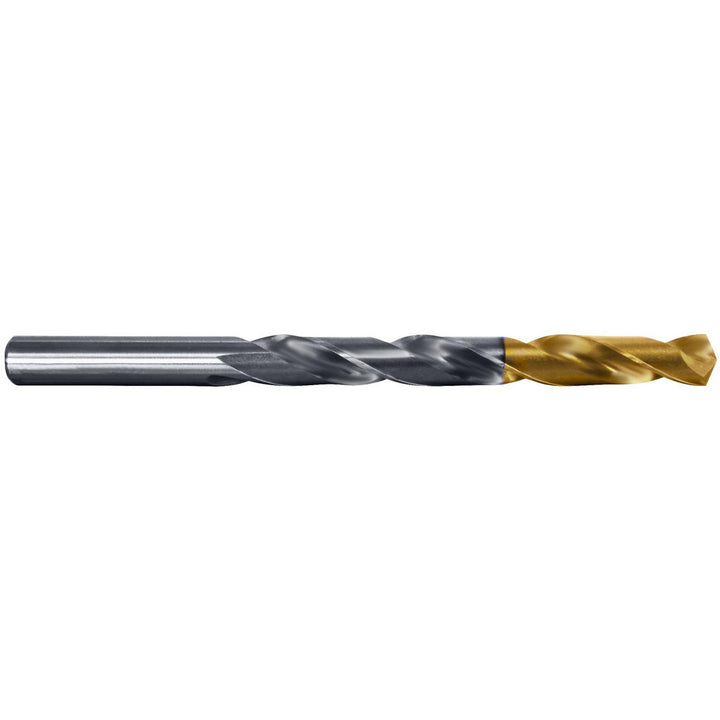

#31 Cobalt Drill Bit, TiN, 135° point - Cle-Line C66085
MFR# C66085Series 1501-TT
$1.99List $2.55
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Cle-Line C66085 is a #31 Cobalt drill bit with a TiN finish, 135° point. Suited for alloy steel, carbon, cast iron, aluminum, non-ferrous metal. 1-5/8 flute length, 2-3/4 overall length. Series 1501-TT.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialCobalt
Drill bit size0.1200
Drill bit size wire#31
Drill point angle degrees135
Flute length in1-5/8
Flute typeRegular Spiral
Number of flutes2
Overall length in2-3/4
Point typeSplit Point
Primary workpiece materialAlloy Steel; Carbon; Cast Iron; Aluminum; Non-Ferrous Metal
Shank diameter0.1200
Shank typeStraight
Specification designationANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
