Cle-Line

Cobalt Jobber Length Drill Bit, TiN, 135° point - Cle-Line C66114

MFR# C66114Series 1501-TT

$105.94List $135.87 Save 22%

In stock - ships in 1-3 business days

CoatingTiN

Description

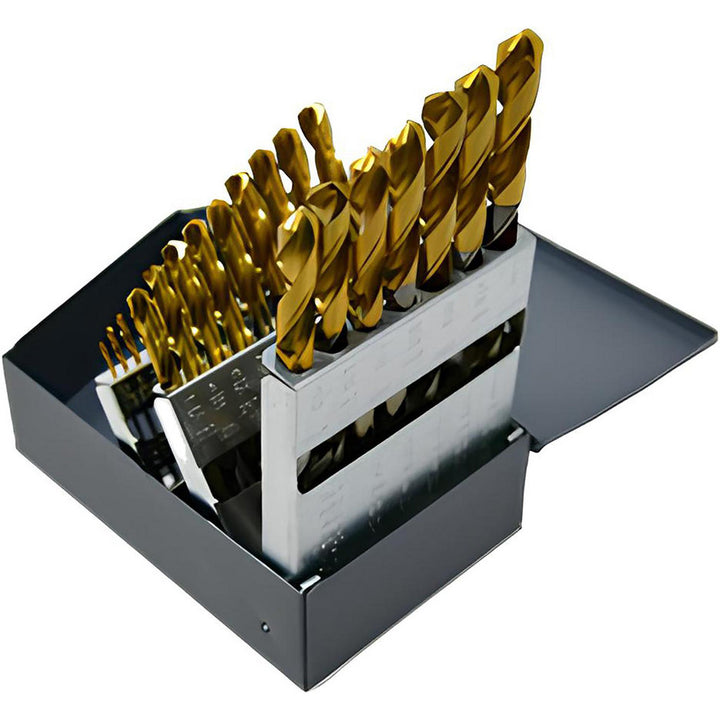

The Cle-Line C66114 is a Cobalt Jobber Length drill bit with a TiN finish, 135° point. Series 1501-TT.

Coating finishTiN

Contents1/16; 3/32; 1/8; 5/32; 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 13/32; 7/16; 15/32; 1/2; metal Case

Coolant throughNo

Cutting directionRight Hand

Drill bit set typeJobber Length Drill Bits

Drill bit sizes included in1/16; 3/32; 1/8; 5/32; 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 13/32; 7/16; 15/32; 1/2

Drill length typeJobber Length

Drill point angle135

Flute length7/8; 1-1/4; 1-5/8; 2; 2-5/16; 2-1/2; 2-3/4; 2-15/16; 3-3/16; 3-7/16; 3-5/8; 3-7/8; 4-1/16; 4-5/16; 4-1/2

Material set typeCobalt

Maximum drill bit size frac inch1/2

Maximum hole size1/2

Minimum drill bit size frac inch1/16

Number of hole sizes15

Number of pieces15.000

Overall length1-7/8; 2-1/4; 2-3/4; 3-1/8; 3-1/2; 3-3/4; 4; 4-1/4; 4-1/2; 4-3/4; 5; 5-1/4; 5-1/2; 5-3/4; 6

Point typeSplit Point

Shank diameter1/16; 3/32; 1/8; 5/32; 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 13/32; 7/16; 15/32; 1/2

Shank typeStraight

Specification designationANSI

StandardsANSI

Storage unit materialMetal

Storage unit typeIndex

System of measurementFractional Inch

Tool applicationMetalworking

Tool materialCobalt

Tool performanceHeavy Duty
