Cle-Line

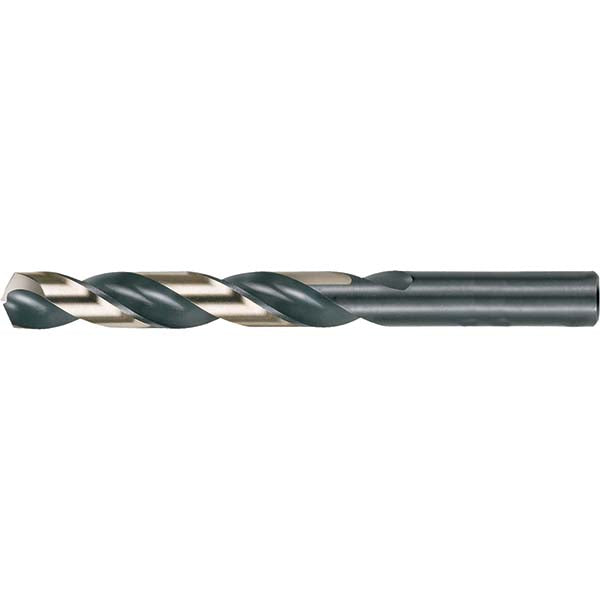

0.3900" HSS Drill Bit, Black/Gold, 135° point - Cle-Line C74019
MFR# C74019
$8.10List $10.20
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingBlack/Gold
Description
The Cle-Line C74019 is a 0.3900" HSS drill bit with a Black/Gold finish, 135° point. Suited for steel, cast iron.
Specifications
Coating finishBlack/Gold
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.3900
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute by diameter ratio3xD
Flute length3.4300
Flute typeRegular Spiral
Material gradeHigh-Speed Steel
Maximum drilling depth0.9800
Number of flats3
Number of flutes2
Overall length5.2400
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3900
Shank length1.8100
Shank typeStraight
Specification designationDIN
Spiral typeRegular
Web configurationTapered
