Cleveland

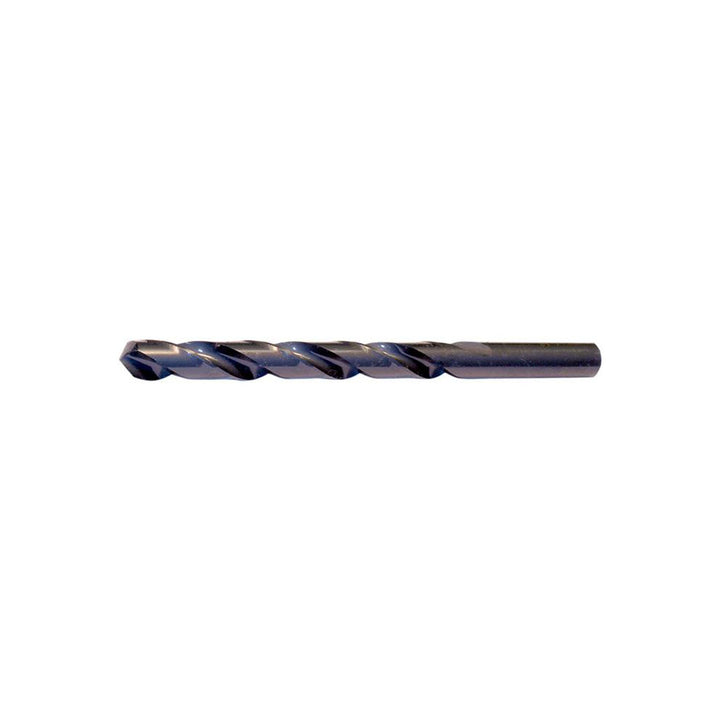

0.0138" High Speed Steel Drill Bit, Oxide, 118° point - Cleveland C01013
MFR# C01013Series 2001
$7.20List $9.23
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C01013 is a 0.0138" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. Series 2001.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0138
Drill bit size range0.0000 - 0.0500
Drill point angle degrees118
Flute length0.1181
Flute typeSpiral
Number of flutes2
Overall length0.7480
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.0138
Shank length0.6299
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
