Cleveland

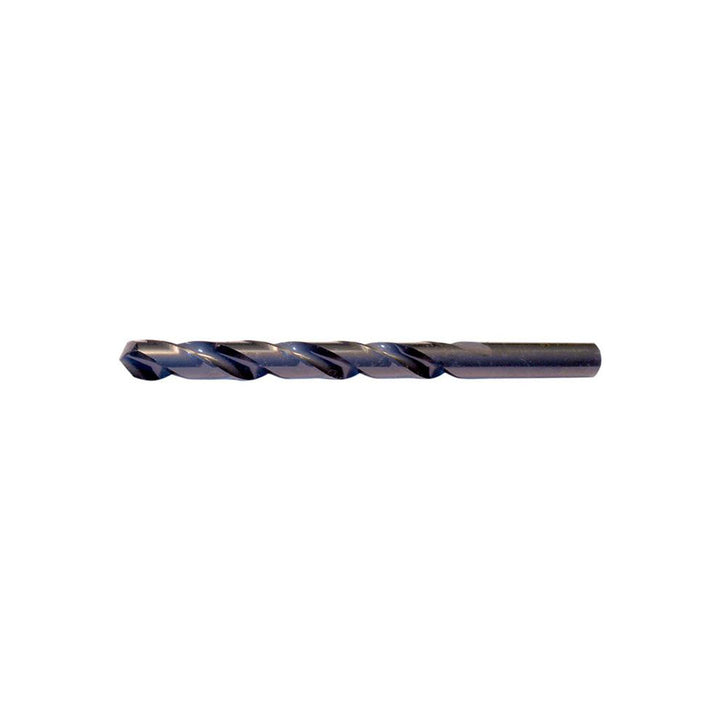

#79 High Speed Steel Drill Bit, Oxide, 118° point - Cleveland C01014
MFR# C01014Series 2002
$7.06List $9.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C01014 is a #79 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 3/4 overall length. Series 2002.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0145
Drill bit size range0.0000 - 0.0500
Drill bit size wire#79
Drill point angle degrees118
Flute length0.1880
Flute typeSpiral
Number of flutes2
Overall length in3/4
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.0145
Shank length0.6250
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
