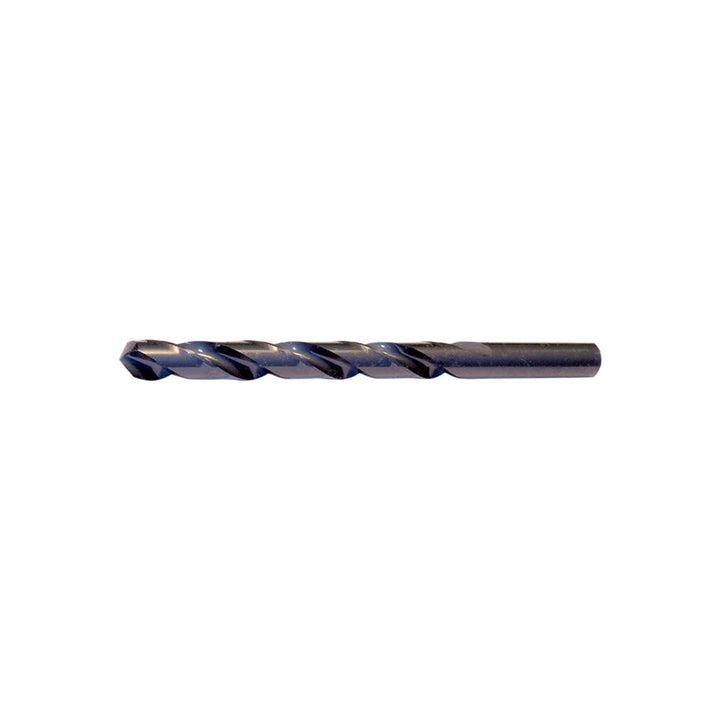

#77 High Speed Steel Drill Bit, Oxide, 118° point - Cleveland C01021

Cleveland

#77 High Speed Steel Drill Bit, Oxide, 118° point - Cleveland C01021

MFR# C01021Series 2002

$6.66List $8.53 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cleveland C01021 is a #77 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 3/16 flute length, 7/8 overall length. Series 2002.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0180
Drill bit size range0.0000 - 0.0500
Drill bit size wire#77
Drill point angle degrees118
Flute length in3/16
Flute typeSpiral
Number of flutes2
Overall length in7/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.0180
Shank length0.6875
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
