Cleveland
#73 High Speed Steel Drill Bit, Oxide, 118° point - Cleveland C01029
MFR# C01029Series 2002
$3.27List $4.19
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

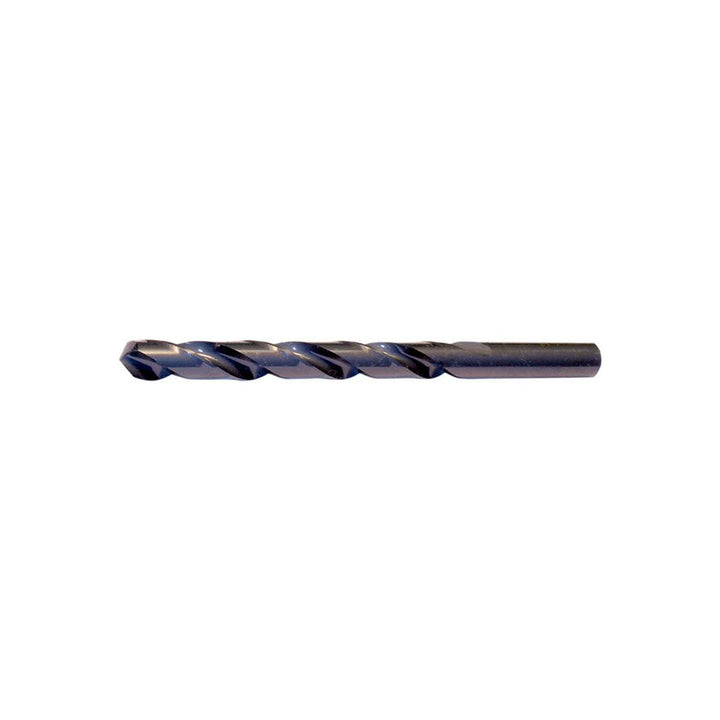

The Cleveland C01029 is a #73 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 5/16 flute length, 1-1/8 overall length. Series 2002.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0240
Drill bit size range0.0000 - 0.0500
Drill bit size wire#73
Drill point angle degrees118
Flute length in5/16
Flute typeSpiral
Number of flutes2
Overall length in1-1/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.0240
Shank length0.8125
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
