Cleveland
31/64" High Speed Steel Drill Bit, 118° point - Cleveland C03163
MFR# C03163
$18.02List $23.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size31/64
Description

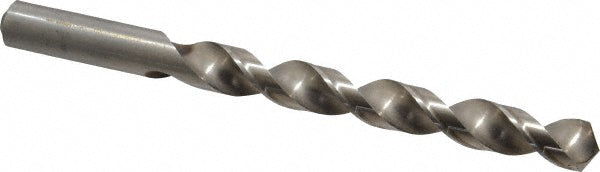

The Cleveland C03163 is a 31/64" High Speed Steel drill bit, 118° point. 4-3/8 flute length, 5-7/8 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in31/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute length in4-3/8
Flute typeSpiral
Overall length in5-7/8
Point typeStandard
Shank diameter in31/64
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeFast
Web configurationTapered
Web thinningWeb-Thinned
